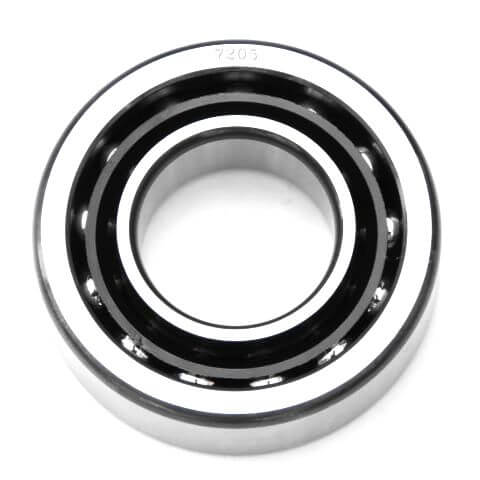

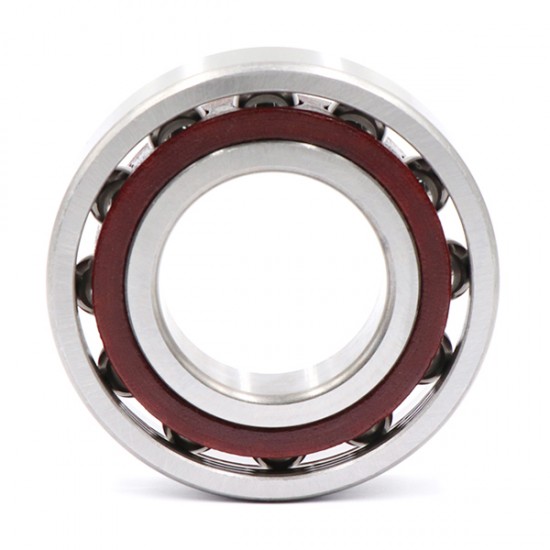

Folded pairs of duplex ball bearings

If a pair of duplexes are fitted, the outer rings of the pair of bearings are opposite each other, i.e. the wide end faces the wide end face and the narrow end faces the narrow end face. This can avoid causing additional axial forces and can be used in both directions to limit the shaft or housing to the axial clearance range.

Because of its inner and outer circle of the raceway can have relative displacement in the horizontal axis, so can simultaneously bear radial load and axial load - combined load (single row angular contact ball bearing can only bear single direction axial load, so generally are often used in pairs installation).

  Contact Now
Product Details

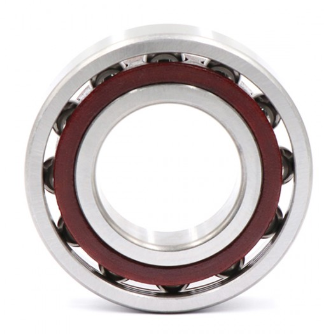

Folded pairs of duplex ball bearings

Maintenance method

1、When the bearings run to a certain period (or maintenance period), all the bearings will be removed.

2、Wash the bearings with diesel oil or paraffin, if there are technical conditions, it is best to open the seal cover to clean.

3、After cleaning, dry the cleaning oil and check the appearance for any damage.

4, with a 150mm or so, the diameter of the angular contact ball bearing inner diameter of the same wooden rod (preferably hollow tube), one end fixed a bearing.

5、While turning the bearing quickly by hand, put the other end of the stick (wooden tube) against the ear or audio amplifier microphone to listen to the bearing rotation noise.

6、After fixing the bearing, pivot the stick horizontally to check if the bearing is worn and loose.

7, loose serious, excessive rotating noise, there are serious defects in the FAG bearing should be eliminated, with the same model instead.

8、Take a barrel to melt the appropriate amount of grease (high quality yellow dry oil) with a civilian fire (not overheated), the tested bearing into the barrel soaked to no bubble overflow. Remove the bearing before the grease cools down, with a small amount of residual grease. Remove the angular contact ball bearing after the grease has cooled, the amount of residual grease is high. Determine the amount of grease residue as needed.

9、Wipe the grease outside the bearing with a soft cloth or toilet paper and assemble the FAG bearing to the pulley in its original state, the maintenance work is finished.
